Happy Birthday Android App

First app from the Udacity Android Basics: User Interface course.

Link to the course: https://classroom.udacity.com/courses/ud834

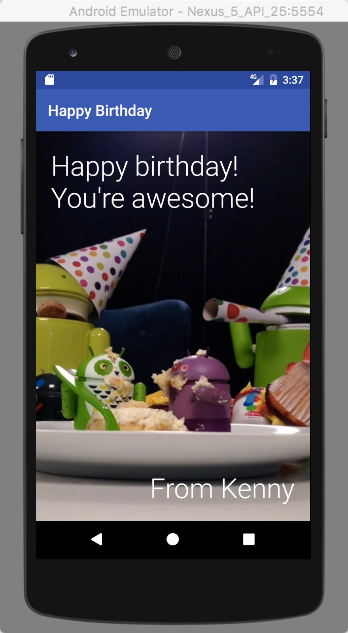

Screenshot

Happy Birthday App

Notes from the course

Lesson 1: Building layouts

TextView

  • default background color is transparent
  • dp = Density independent pixels = read “dips”
  • hard coding
  • set width and height to wrap_content
  • “set `wrap_content’
  • TextView
  • “declare an attribute”
  • element -> attribute name, attribute value
  • font sizes
    • sp = scale independent pixels
  • textAppearance attribute
  • textSize attribute
  • textColor
  • HEX value of colors

ImageView

  • “drawable”
  • use @ to reference a resources folder
  • scaleType tells screen how to scale the image on the screen
    • center, centerCrop
  • “full bleed image” means that images go from edge to edge
  • images in dp
  • android:textStyle
    • “constant values” of normal, bold, italic

Material design

  • keylines
  • typography
  • colors
  • navigation drawer, status bar

ViewGroups

  • container for views
  • parent and child ViewGroups
  • sibling views
  • root view
  • linear layout
    • vertical column
    • horizontal row
  • relative layout
    • relative to parent or other child views
  • android:orientation
  • add xml namespace declaration in the opening tag of the root view of xml file: xmlns:android
  • match_parent
    • child view matches the height/width of the parent view group
  • ViewGroup layout parameters
    • handled by the parent parameters
    • android:layout_height
  • LinearLayout weight
    • android:layout_weight
    • default weight value is 0
    • for spacing out views equally
  • EditText
    • for text input

Relative layout

  • aligns to parent top/right/bottom/left edge
  • android:layout_alignParentRight attribute
  • attributes false by default
  • can center horizontally/vertically
  • top left by default
  • relative to parent or to other views
  • can add id to views
  • @ refers to a resource in the Android app
  • add + for first time declaring an id
  • view id names must be unique
  • layout params

Padding and margin

  • default value is 0
  • margin needs ViewGroup
    • ViewGroup handles the margin
  • same if background is transparent

Practice set 1: Android Studio

  • RelativeLayout is better for overlapping views
  • put images in drawable folder

Quizzes

Quiz: layout_weight

<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="match_parent">

    <ImageView
        android:src="@drawable/ocean"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:scaleType="centerCrop" />

    <TextView
        android:text="You're invited!"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="0"
        android:textColor="@android:color/white"
        android:textSize="54sp"
        android:background="#009688" />

    <TextView
        android:text="Bonfire at the beach"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_weight="0"
        android:textColor="@android:color/white"
        android:textSize="34sp"
        android:background="#009688" />

</LinearLayout>

Quiz: Relative to other views

<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:background="#FF9800"
    >

    <TextView
        android:id="@+id/lyla_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentLeft="true"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Lyla" />

    <TextView
        android:id="@+id/me_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_toRightOf="@id/lyla_text_view"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Me" />

    <TextView
        android:id="@+id/natalie_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_above="@id/lyla_text_view"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Natalie" />

    <TextView
        android:id="@+id/jennie_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Jennie" />

    <TextView
        android:id="@+id/omoju_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentRight="true"
        android:layout_above="@id/jennie_text_view"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Omoju" />

    <TextView
        android:id="@+id/amy_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentBottom="true"
        android:layout_alignParentRight="true"
        android:layout_above="@id/omoju_text_view"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Amy" />

    <TextView
        android:id="@+id/ben_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Ben" />

    <TextView
        android:id="@+id/kunal_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_toLeftOf="@id/ben_text_view"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Kunal" />

    <TextView
        android:id="@+id/kagure_text_view"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_alignParentTop="true"
        android:layout_centerHorizontal="true"
        android:layout_toRightOf="@id/ben_text_view"
        android:background="#3F51B5"
        android:textColor="#FFFFFF"
        android:textSize="24sp"
        android:text="Kagure" />

</RelativeLayout>
Quiz: List item with relative layout
<RelativeLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent" >

    <ImageView
        android:id="@+id/photo"
        android:layout_width="56dp"
        android:layout_height="56dp"
        android:scaleType="centerCrop"
        android:src="@drawable/ocean" />

    <TextView
        android:id="@+id/name"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:text="Pebble Beach"
        android:layout_toRightOf="@id/photo"
        android:textAppearance="?android:textAppearanceMedium" />

    <TextView
        android:id="@+id/location"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_toRightOf="@id/photo"
        android:layout_below="@id/name"
        android:text="California"
        android:textAppearance="?android:textAppearanceSmall" />

    <TextView
        android:id="@+id/distance"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_toRightOf="@id/photo"
        android:layout_below="@id/location"
        android:text="10 miles away"
        android:textAppearance="?android:textAppearanceSmall" />

</RelativeLayout>
Quiz: Padding vs margin
<LinearLayout
    xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical">

    <ImageView
        android:src="@drawable/ocean"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:scaleType="centerCrop"
        android:layout_marginBottom="0dp" />

    <TextView
        android:text="You're invited!"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:paddingLeft="16dp"
        android:paddingTop="16dp"
        android:paddingBottom="16dp"
        android:paddingRight="16dp"
        android:textColor="@android:color/white"
        android:textSize="45sp"
        android:background="#009688"/>

    <TextView
        android:text="Bonfire at the beach"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:paddingLeft="16dp"
        android:paddingBottom="16dp"
        android:paddingRight="16dp"
        android:textColor="@android:color/white"
        android:textSize="24sp"
        android:background="#009688"/>

</LinearLayout>
